Part No.: 524C4102-00
Norminal Diameter: 100MM
Nominal Pressure: 6bar
Design Tempreature: -40°C~ + 120°C
Contact Part: CF8
Seal: FEP+ VITON

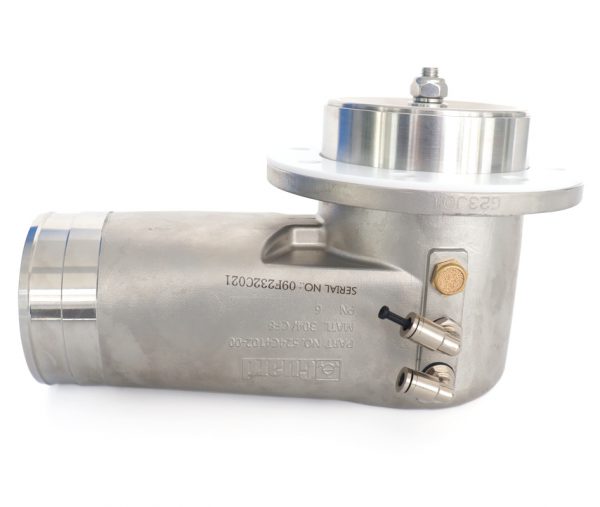

Vapor Recovery Valve – Pneumatic control. Integral elevation at the valve body mounting hose， suitable for all kinds of tank. Normally closed, downstream connection to vapor recovery adapter.
Fitting Details
Part Drawing
| Item | Part No. | Description |
| 1 | 524C4102-01 | Body |
| 2 | 8598150036 | elastic collar |
| 3 | 524C4101-02 | Guard |
| 4 | 524C4101-03 | Stuffing Clamp |
| 5 | 8532000031.5*1.8 | O-Ring |
| 6 | 524C4102-02 | Spindle |
| 7 | 8532000028*2.65 | O-Ring |
| 8 | 524C4101-05 | Spring |
| 9 | 8532000015*2.65 | O-Ring |
| 10 | G8536002091*3.53 | O-Ring |
| 11 | 524C4101-06 | Closure Plate |
| 12 | 524C4101-07 | Gasket |
| 13 | 8598110010 | Snap Ring |
| 14 | 85985400M10 | Spindle |
| 15 | 524C4101-08 | Flameproof Gauzes |
| 16 | 85981 50075 | elastic collar |
| 17 | 96006-DN8 | 1/4" Street Elbow |
| 18 | 9500DN8-01 | Deafener |
