Part No.: 524C4101-00
Norminal Diameter: 100MM
Connection:8 x ф 11 xPCD130
Nominal Pressure: 6Bar
Design Tempreature: – 40°C~ + 120°C
Contact Part: CF8
Seal: FEP+ VITON

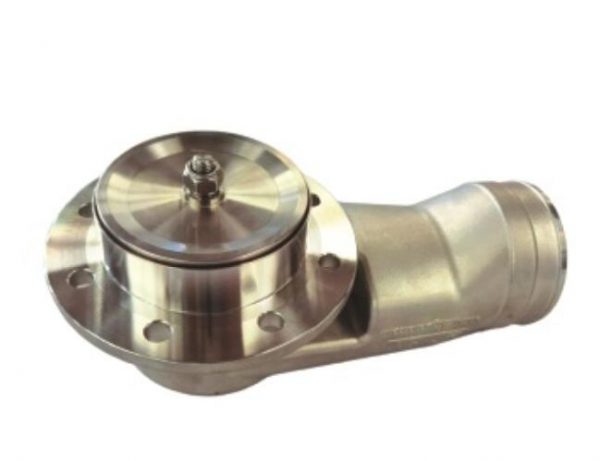

Vapor Recovery Valve – pneumatic control, installed on the tank top or manlid, when the tank loading and unloading material, control gas into or out of the tank, is the key valve to achieve vapor recovery.
Fitting Details
Part Drawing
| Item | Part No. | Description |
| 1 | 524C4101-01 | Body |
| 2 | 85981 50036 | Snap Ring |
| 3 | 524C4101-02 | Damper |
| 4 | 524C4101-03 | Stuffing Clamp |
| 5 | 8532000031.5*1.8 | O-Ring |
| 6 | 524C4101-04 | Spindle |
| 7 | 8532000028*2.65 | O-Ring |
| 8 | 524C4101-05 | Spring |
| 9 | 8532000015*2.65 | O-Ring |
| 10 | G8536002091*3. 53 | O-Ring |
| 11 | 524C4101-06 | Closure Plate |
| 12 | 524C4101-07 | Gasket |
| 13 | 8598110010 | Spring Washer |
| 14 | 85985400M10 | LockNut |
| 15 | 524C4101-08 | Flameproof Gauzes |
| 16 | 8598150075 | Snap Ring |
| 17 | 96006-DN8 | 1/4" Street Elbow |
| 18 | 9500DN8-01 | Deafener |
