Part No.: 18800002-00
Nominal Diameter: DN80
Design Temperature: – 20°C~ 150°C
Contact Parts: 304
Seal:Food Grade Silicone Rubber
Remote Control Breather Valve ( Closed ) – welded flange connection,pneumatic remote control, O-ring material is food grade silastic. Pneumatic opening strength, can prevent blockage caused by crystalline adhesion of the product.The fully closed can avoid product volatilization and leakage.
Fitting Details

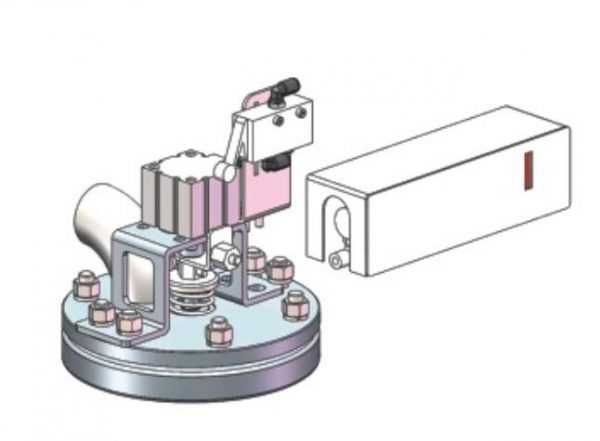

Part Drawing
| Item | Part No. | Description |
| 1 | 18800002-01 | Weld-in Flange |
| 2 | 18800002-02-00 | Closure Plate Assembly |
| 3 | 18800002-03-00 | Support Seal Flange Assembly |
| 4 | 18800002-04 | Seal Gasket |
| 5 | 18800002-05 | Cylinder Mount |
| 6 | 18800001-06 | Vacuum Spring |
| 7 | 18800001-07 | Negative Pressure Spring Upper Mount |
| 8 | 18800001-08 | Main Cylinder Joint |
| 9 | 18800001-09 | Open Rollers |
| 10 | 18800001-10-00 | Open Roller Mount |
| 11 | 18800002-06 | Ventilation Valve Fixed Seat |
| 12 | 18800001-12-00 | Main Cylinder Assembly |
| 13 | 18800001-13-00 | Directional Valve Assembly |
| 14 | 18800001-14-00 | Indicator Cylinder Mount |
| 15 | 18800001-15-00 | Indicator Cylinder Assembly |
| 16 | 18800001-16 | Instruction Panel |
| 17 | 8553000012*18*4 | C Type Rubber Dust Ring |
| 18 | 85987100M12*35 | M12*30 Bolt |
| 19 | 8598110012 | Spring Washer |
| 20 | 85984400M12 | M12 Nut |
| 21 | 85984400M12 | M4*35 Capscrew |
| 22 | 859811004 | Spring Washer |
| 23 | 859810004 | Washer |
| 24 | 85984400M4 | M4 Nut |
| 25 | 85983300M6*16 | M6*16 Bolt |
| 26 | 859811006 | Spring Washer |
| 27 | 859810006 | Washer |
| 28 | 85984400M6 | M6 Nut |
| 29 | 85988100M8*20 | M8* 20 Capscrew |
| 30 | 859811008 | Spring Washer |
| 31 | 859864005*24 | 5*24 Hinge Pin |
| 32 | 859860002*14 | 2.0*14 Split Pin |
| 33 | 85A4000050*5.3 | 50*5.3 O-Ring |
| 34 | 85A4000011.2*2.65 | 11.2*2.65 O-Ring |
| 35 | 859810008 | Washer |
| 36 | 85984200M8 | M8 Nut |
