Part No : CF403101-00
Connection :
Inlet Flange 2 Inch Fitting
Outlet Connection Type: Inch Quick Connect
Nominal Pressure :PN2
Design Temperature : – 40°C ~ +200°C
Contact Parts :Silica Gel、304
Seal :Silica Gel、PTFE

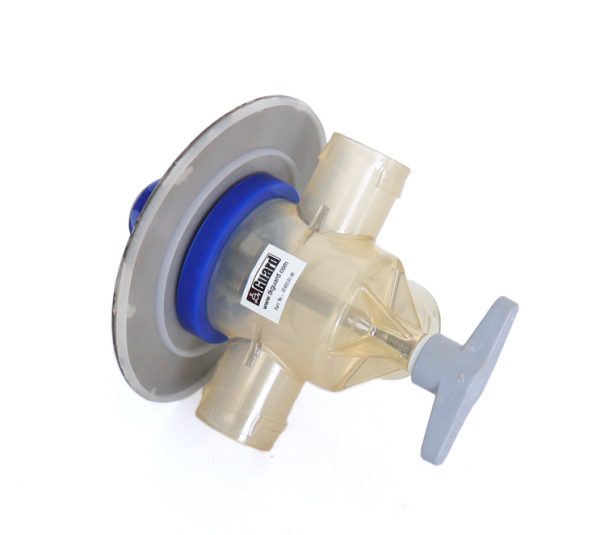

Blower is used for powder tank car in a blow aid, this product 2″ joint connecting the main air inlet channel, 1.5″ joint in series with other blower used in high pressure gas flow, the main sealing material of the product is made of silica gel, in addition，the main body can be selected for two，one two specifications of products.
Fitting Details
Part Drawing
| Item | Part No. | Description |
| 1 | CF402101-01 | Sealing Cap |
| 2 | CF402101-02-00 | Fixed Bracket Assembly |
| 3 | CF402101-03-00 | Sealing Steel Plate Assembly |
| 4 | CF402101-04 | Gasket |
| 5 | CF403101-01 | Three Way |
| 6 | CF402101-06 | Washer |
| 7 | CF402101-07 | Fixed Nut Assembly |
| 8 | CF403101-02 | Three-way Label For Powder Blower |
