Guard cooperates with South Korea Company K2N Co.Ltd to design and develop PFA lined valves. With adopting international First Class PFA raw material from Daikin and Dupont and lining in South Korea. our PFA material has good chemical resistance, chemical properties, anti-aging features and so on. Now our PFA valves have been applied to transportation and storage of dangerous cargoes from Samsung Electronics Semiconductor, Liguid Crystal and SK chemical.Our certified products are PFA lined ball valves, Diaphragm Valves. Check valves and kinds of fittings and flanges.

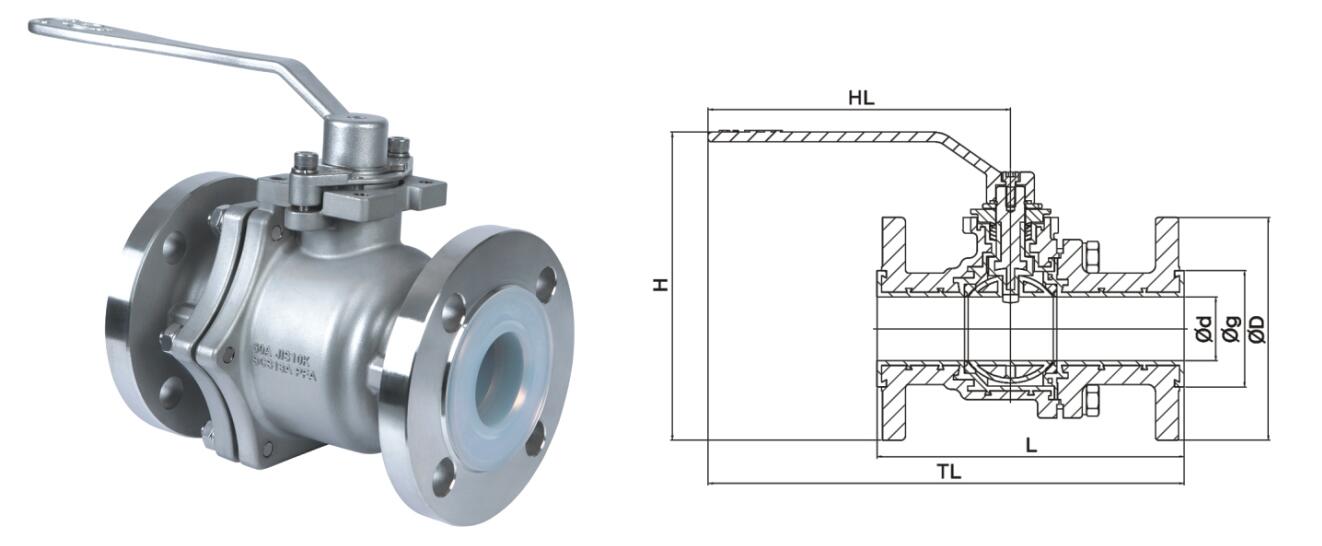

Part Drawing
Two kinds of material are available. Stainless steel &PFA and carbon steel & PFA. With once shaping technology and multistage seals on stem. we guarantee our valves without leakage. Machining,assembly and testing of valves are performed in a dust-free workshop to ensure purity..
| Item | Description | Stainless steel | Crabon steel/iron |
| 1 | Body | SCS13A PFA Lined | SCPH2/WCB/DI PFALined |
| 2 | Cap | SCS13A PFA Lined | SCPH2/WCB/DI PFALined |
| 3 | Ball | SCS13A PFA Lined | SCS13A PFA LINED |
| 4 | Stem | SCS13A PFA Lined | SCS13A PFA LINED |
| 5 | Seat Rings | PTFE | PTFE |
| 6 | V-Ring | PTFE | PTFE |
| 7 | Gland | SCS13A | SCPH2 |
| 8 | Indicator | SUS304 | SUS304 |
| 9 | Gasket | PTFE | PTFE |
| 10 | Snap Ring | SUS304 | SUS304 |
| 11 | Handle(Lever) | SCS13A | SCPH2 |
| 12 | Bolt | SUS304 | SUS304 |
| 13 | Nut | SUS304 | SUS304 |
| 14 | Washer | SUS304 | SUS304 |
