Part No.: 53804P3
Norminal Diameter: 100MM
Nominal Pressure: 6bar
Design Tempreature: – 40°C~ + 120°C
Contact Part: CF8
Seal: FEP+ VITON

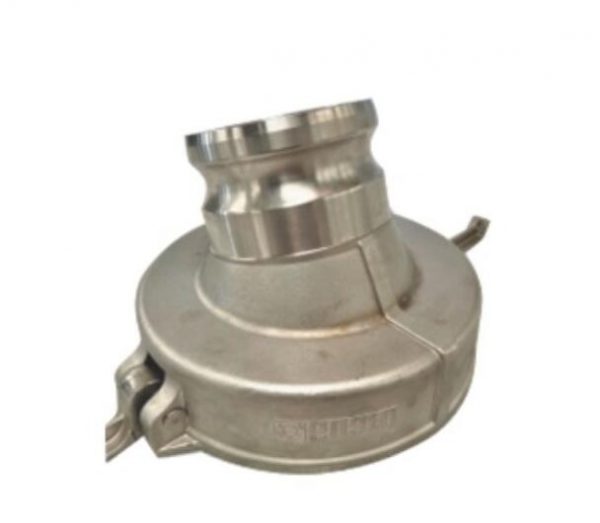

Gravity Drop Coupling – Connected to API valve, outlet connected to external pipeline for quick discharge， angled downward outlet design for gravity discharge, API connector at female end.
Fitting Details
Part Drawing
| Item | Part No. | Description |
| 1 | 53804P33-01 | Reducer Union |
| 2 | 53804P3-02 | Lifting Lug |
| 3 | 85360020108*7 | O-Ring |
| 4 | DLJ68001-16 | Rings |
| 5 | 53804P3-05 | Chain |
| 6 | 53804P3-06 | Rivet |
