Part No.: 514C4104-00
Norminal Diameter: 100MM
Connection: 8x ф 11x PCD150
Nominal Pressure: 6Bar
Design Tempreature: – 40°C~ + 120C
Contact Part: CF8/CF8M
Seal: FEP+ VITON

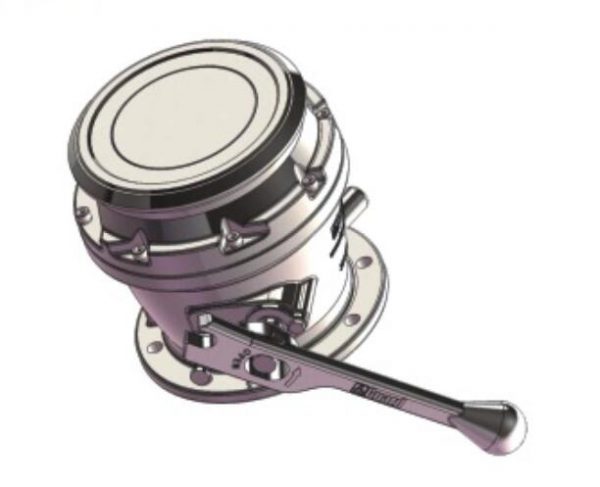

Oil Discharge Valve -installed at the bottom of the tank,using quick connection, can quickly unload oil, is an important part of the bottom of the discharge, upstream connected to the bottom valve.
Fitting Details
Part Drawing
| Item | Part No. | Description |
| 1 | 514C4104-01 | Adaptor |
| 2 | 514C4104-02 | Body |
| 3 | 514C4104-05 | Seal |
| 4 | 8536002093.5*7 | 93.5*7 O-ring |
| 5 | 514C4104-14 | Spring |
| 6 | 514C4 104-06 | PTFE Gasket |
| 7 | 514C4104-04 | Gear |
| 8 | 859863005*16 | 5*16 Pin |
| 9 | 514C4104-13 | PTFE Bush |
| 10 | 85988100M5*10 | m5*10 Screw |
| 11 | 8598110010 | Washer |
| 12 | 85988700M6*12 | m6* 12 Screw |
| 13 | 514C4104-10 | Ring |
| 14 | 514C4104-09 | Spindle |
| 15 | 514C4104-12 | Locating Pin |
| 16 | 514C41-17 | Handle |
| 17 | 859864006*45 | 6*45 Hinge Pin |
| 18 | 859960002*14 | 2*14 Split Pin |
| 19 | 85983300M6*12 | M6*12 Screw |
| 20 | 514C4104-07 | Gasket |
| 21 | 8598120018 | Ring |
| 22 | 514C4104-08 | V Packing |
| 23 | 8532000020*1.8 | 20*1.8 O-ring |
| 24 | 514C4104-03 | Packing |
| 25 | 8532000017.5*1.8 | 17.5*1.8 O-ring |
| 26 | 514C4104-15 | Spring |
| 27 | 514C4104-11 | Washer |
| 28 | 85988100M6*25 | M6*25 Screw |
| 29 | 859811006 | Spring Washer |
