Part No.: SS2516201
Connection:Inlet connection with BSP internal thread
Outlet connection 1 inch BSP internal thread
Nominal Diameter: DN25
Nominal Pressure: 16Bar
Design Temperature:≤180°C
Contact Parts: CF8
Seal:copper

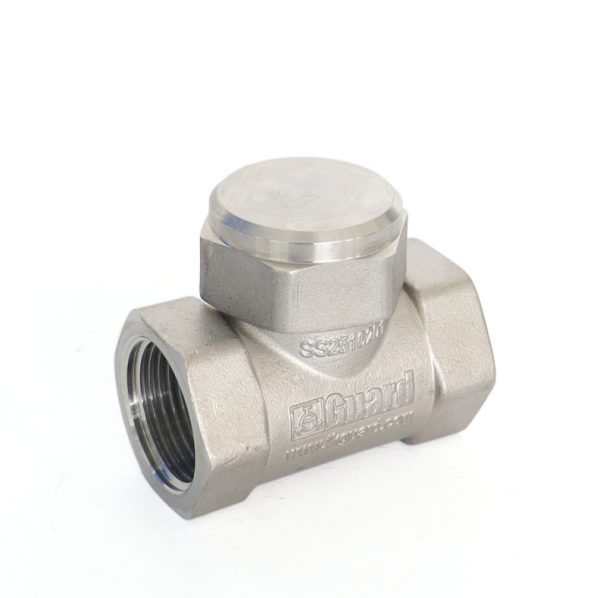

DN25 Steam Trap,threaded connection,red copper sealing ring, maximum working temperature is 180°C.
Fitting Details
Part Drawing
| Item | Part No. | Description |
| 1 | SS251 6201-01 | Body |
| 2 | SS2516201-02 | Cap |
| 3 | SS2516201-03 | Disc |
| 4 | SS251 6201-04 | Brass Washer |
