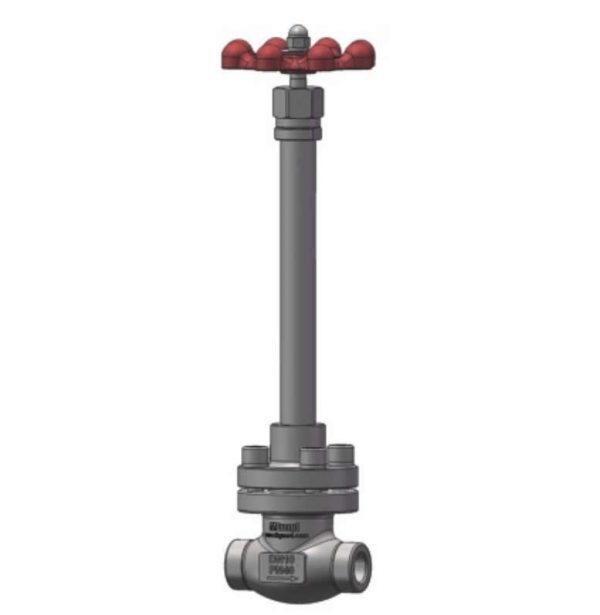

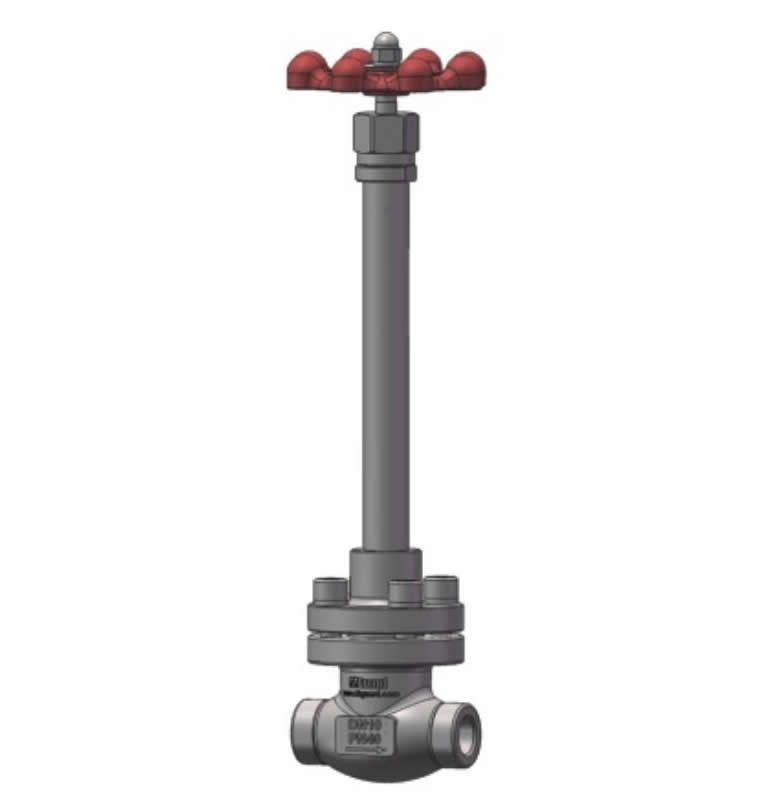

Cryogenic Globe Valve- Suitable for LNG or other cryogenic medium.With PCTFE seal. Design temperature range -196℃~80℃.
Part No.:DJL41001-00
Norminal Diameter: DN10
Design Pressure: PN40
Material:304
Seal:PCTFE、PTFE
Design Tempreature:-196℃~80℃
Fitting Details
Part Drawing
| Item | Part No. | Description |
| 1 | DJS41001-01 | Body |
| 2 | DJL41001-02-00 | Cap |
| 3 | DJL41001-01 | Spindle |
| 4 | DJS41001-04 | Gasket |
| 5 | DJS41001-05/06 | Spindle Packing |
| 6 | 8531000011.8*1.8 | O-Ring |
| 7 | 853100007.8*1.8 | O-Ring |
| 8 | DJS41001-07 | Packing Sleeve |
| 9 | DJS41001-08 | Handle |
| 10 | DJS41001-09 | Washer |
| 11 | 859811006 | Spring Washer |
| 12 | 85984800M6 | Nut |
| 13 | DJS41001-10 | Packing Gland |
| 14 | DJS41001-11 | Spring |
| 15 | DJL41001-03 | LockNut |
| 16 | 85988100M8*25 | Capscrew |
| 17 | 859811008 | SpringWasher |
| 18 | DJS41001-12 | BodySeal |
| 19 | DJS41001-13 | Nut |
| 20 | DJS41001-14 | Gasket |
| 21 | DJS41001-15 | Pressure Plate |
| 22 | DJS41001-16 | MainSeal |
| 23 | 859810006 | A-Washer |
| 24 | 85984500M6 | CapScrew |
