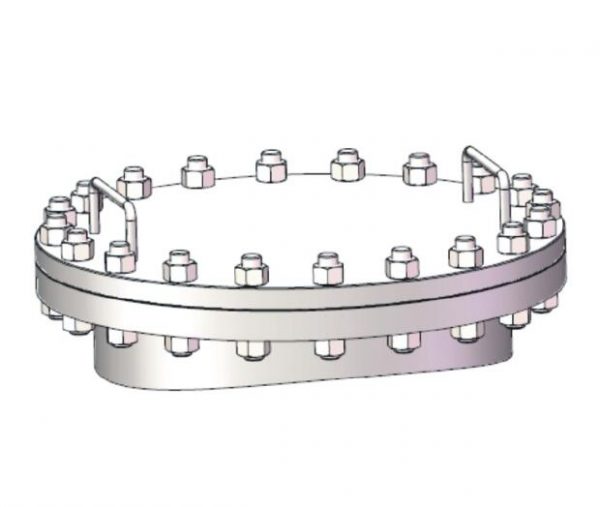

Part No. : RW5JAF06-00
Nominal Diameter : 500mm
Points : 20
Material: 304/316L
Design Temperature : – 40°C~ + 200°C
Temperature range depends on the seal
Suitable for Lined Tanks.
Option – Can be customized different radian, the height of the collar according to the customer’s tank size;
Option – Blind flange cover optional installation of safety valve reserved hole and other valve installation flange;
Fitting fastener package;
Manlid seal sold separately.
Fitting Details
Part Drawing
| Item | Part NO . | Description | Material |
| 1 | RW5JAF06-01-00 | Manlid | Assembly |
| 2 | SNFA0191 | Screw (Sold Separately ) | See Screw Data |
| 3 | RW5JAF06-02-00 | Neckring | Assembly |
Note: Product material can be customized according to customer needs.
