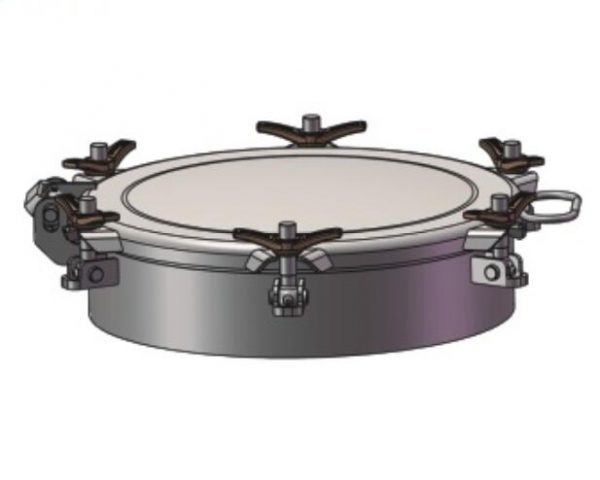

Part No.: R4463F01-00
Nominal Diameter: 500mm .
Design Pressure: 4Bar(58PSI)
Test Pressure: 6Bar(87PSI)
Points: 8
Material: 304/316L
Design Temperature: – 40°C~ + 200°C
Temperature range depends on the seal
Optional – Pressure 1Bar, 3Bar, 4Bar and other specifications to choose; Optional – Deep neckring height 120mm，150mm and other dimensions can be customized;
Stainless steel swingbolts with stainless steel handnuts.
Manlid seal sold separately.
Fitting Details
Part Drawing
| Item | Part NO. | Description | Material |
| 1 | R4583A01-01-00 | Manlid | Assembly |
| 2 | Seal (Sold Separately) | See Seal Data | |
| 3 | R4583C01-01-00 | Neckring | Assembly |
| 4 | R4583A01-03 | Hinge Pin | 304 |
| 5 | 859960004*25 | Split Pin | 304 |
| 6 | R4583A01-05-00 | Long Swingbolt Assembly | Assembly See Seal Data |
| 7 | R4583A01-12 | Washer | 304 |
