Part No.: 10801D01
Connection:
4x ф 17 x PCD160
119mm
Nominal Diameter: 74mm
Nominal Pressure: 25Bar
Design Temperature: – 40°C ~ +200°C
Contact Parts: CF8M
Seal: VITON

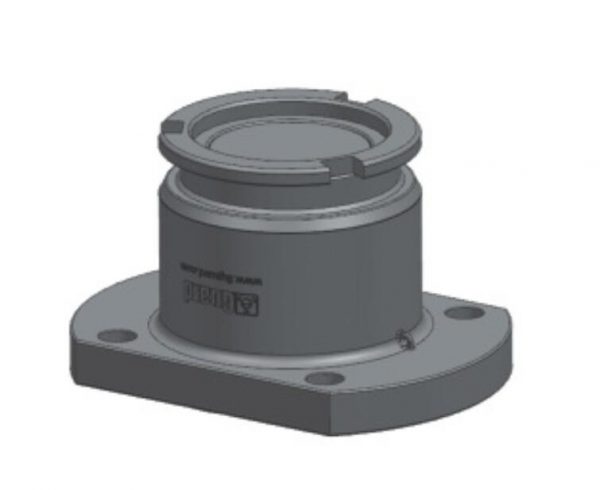

3″ Dry Coupling- the inlet flange is 4xф17 equispaced on the PCD160mm flange, the outletis ф 119mm coupling, the main seal is made of Vition, and DN65,DN50 are also available.
Fitting Details
Part Drawing
| Item | Part No. | Description |
| 1 | 8532000065*2.65 | O-ring |
| 2 | 1 0801D01-04 | Pressure Plate |
| 3 | 10801D01-01 | 3" Dry Coupling Body |
| 4 | 10801D01-03 | Spring |
| 5 | 10801D01-02 | Guide-ba |
