Part No. : QTCD5001-00
Connection :
Nominal Diameter : 50mm
Nominal Pressure :PN40
Applicable Temperature :
960PSIG AT 120° F
100PSIG AT 375° F
Contact Parts : CF8M
Seal : PTFE、VITON
2″ Carbon dioxide ball valve inlet and outlet are socket welding joint form, socket welding joint inner hole are ф58, the main seal is made of PTFE carbon filled material, and fireproof, similar products can be selected for DN15、DN40、 DN50、 DN65.
Fitting Details

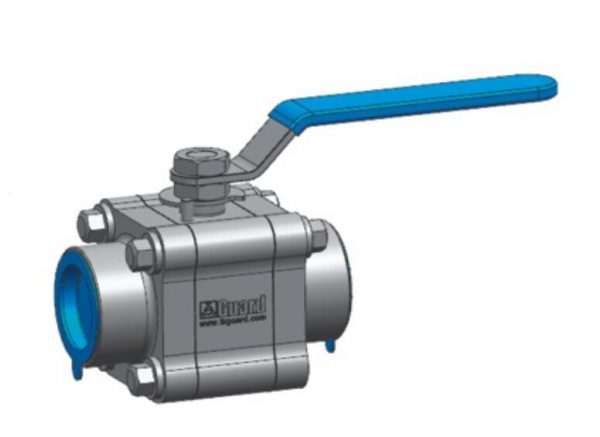

Part Drawing
| Item | Part No. | Description |
| 1 | QTCD5001-14 | Plug Cap |
| 2 | QTCD5001-13 | Bolt |
| 3 | QTCD5001-04 | Bonnet |
| 4 | QTCD5001-05 | Main Seal |
| 5 | QTCD5001-02 | Ball |
| 6 | QTCD5001-06 | Gasket |
| 7 | QTCD5001-01 | Body |
| 8 | QTCD5001-15 | Location Pin |
| 9 | 8532000014*2.65 | O-ring |
| 10 | QTCD5001-03 | Spindle |
| 11 | QTCD5001-07 | Seal |
| 12 | QTCD5001-08 | Washer |
| 13 | QTCD5001-09 | Locating Ring |
| 14 | QTCD5001-10 | Locating Plate |
| 15 | 85984600M22 | Nut |
| 16 | QTCD5001-11 | Handle |
| 17 | QTCD5001-12 | Handle cover |
