Part No.: QLF75006-00
Connection:
4x ф17.5xPCD ф 125
Nominal Diameter: 39mm
Nominal Pressure: PN7
Design Temperature: – 40°C~ +190°C
Contact Parts: CF8M
Seal: PTFE、VITON

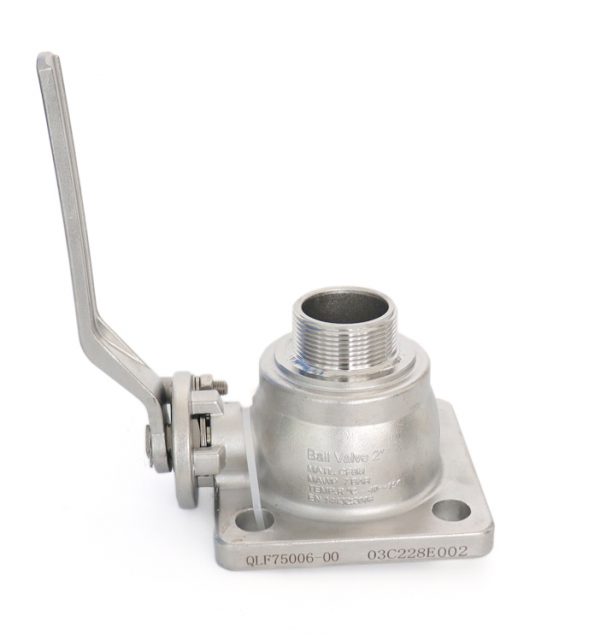

2″-1.5″Air Ball Valve Flange end 2″ to 1.5″ BSP outlet end,with lead sealing hole. Sealing seat is suspension type， with double sealing function, through adjusting bolt to adjust valve seal.
Fitting Details
Part Drawing
| Item | Part No. | Description |
| 1 | QLF75006-01-00 | Body |
| 2 | QLF65001-02 | Ball |
| 3 | QLF7 5001-03 | Spindle |
| 4 | QLF7 5001-04 | Ball Seal |
| 5 | QLF7 5001-05 | Ball Seal |
| 6 | QLF 75001-06 | Gasket |
| 7 | 8532000014*2.65 | O-Ring |
| 8 | QL F65001-08 | Stuffing |
| 9 | QLF 75001-08 | Junk Ring |
| 10 | QL F65001-10 | Belleville Washer |
| 11 | QL F65001-12 | Nut |
| 12 | QLF65001-11 | Plain Washer |
| 13 | QLF75001-12 | Location Nut |
| 14 | QL F65001-13 | Handle |
| 15 | 8598120018 | Lock Ring |
| 16 | 85988 1 00M3*10 | Stop Bolt |
| 17 | 85988 100M8*25 | Stop Bolt |
| 18 | 85988 100M8*25 | Spring Washer |
| 19 | 85981 0008 | Washer |
| 20 | 85984400M8 | Nut |
