Part No. : DKF75001-00
Connection:4x ф 18 x PCD125
4x ф 18x PCD114.3
Nominal Diameter: 48.7mm
Nominal Pressure: 6.9Bar
Contact Parts: 316
Fitted with PTFE seal
Design Temperature: -40°C ~ 200°C

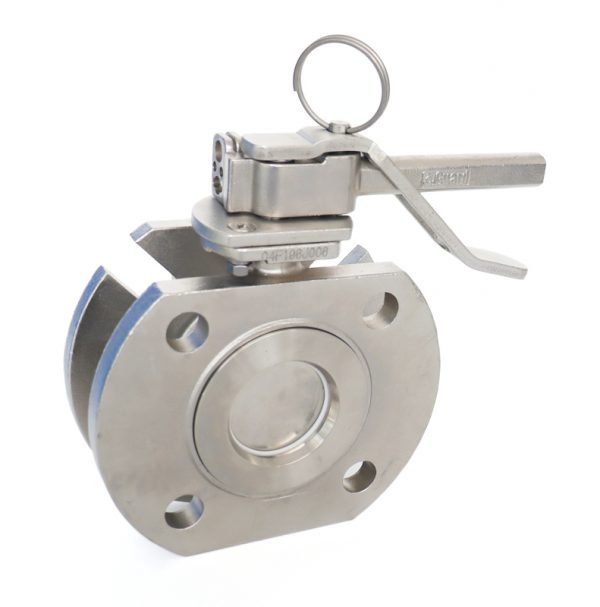

2″ Flanged Air Inlet Butterfly Valve- -outlet flange drilled 4x ф 18 holes equi-spaced on a 114.3-125mm PCD,Complete with 1/4″ pressure gauge connection and TIR facility to handle. Contact parts in 316 stainless steel with PTFE seal. .
Fitting Details
Part Drawing
| Item | Part No. | Description |
| 1 | DKF75001-01 | Body |
| 2 | DKB75001-02 | Seal Clamp Plate |
| 3 | DKB75001-03 | Main Seal |
| 4 | DKB75001-04 | Closure Plate |
| 5 | DKB75001-11 | Spindle |
| 6 | DKB75001-10 | 0-Ring |
| 7 | DLJ68001-18 | V Packing |
| 8 | DLJ68001-10 | O-Ring |
| 9 | DLJ68001-09 | Split Bearing |
| 10 | DKB75001-09 | Stuffing Clamp |
| 11 | GB/T6170-2000 | | Nut |
| 12 | GB/T93-1987 | Spring Washer |
| 13 | GB/T819.1-2000 | Sockethead Capscrew |
| 14 | GB/T70.3-2000 | Countersunk Setscrew |
| 15 | DKB75001-06 | Handle |
| 16 | DKB75001-07 | Operating Lever |
| 17 | DLJ68001-14 | Handle Location Pin |
| 18 | DLJ68001-15 | Handle Location Spring |
| 19 | DLJ68001-16 | Split Ring |
| 20 | DLJ68001-19 | PTFE Bearing |
| 21 | GB/T95 | Washer |
| 22 | GB/T70.3-2000 | Countersunk Setscre |
Note: Part for repairing is available.
