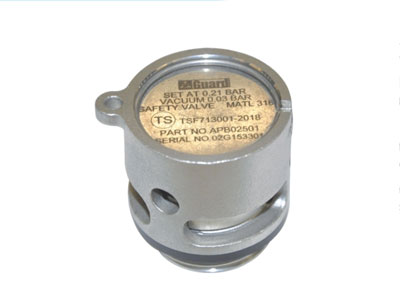

Part No.:APB02501-00
Nominal Diameter: DN25
Connection:1”BSP
Pressure Setting: 0.21Bar
Pressure Setting: 0.03Bar
Contact Parts:316L
Seal:Viton
Design Temperature:-40℃~200℃
Different pressure and vacuum settings are available.
1″BSP SafetyRelief Valve-1” BSP Connection. Suitable for a vacuum range of between 0.02-0.1 Bar(0.5”-3″ HG)and a pressure range of between 0.07-3.1 Bar(1-45PSl).Complete with manual vent button and Viton tank seal.
Option-Flame Proof Gauze.
Fitting Details
Part Drawing
| Item | Part No. | Description |
| 1 | APB02502-12 | Jump Ring |
| 2 | APB02502-11 | Cap |
| 3 | APB02501-06 | Pressure Spring |
| 4 | APB02501-10 | Vacuum Spring Pad |
| 5 | APB02501-07 | Vacuum Spring |
| 6 | GB/T6172.1 | Nut |
| 7 | APB02502-04 | Pressure Plate |
| 8 | APB02501-03 | Pressure Seal |
| 9 | APB02501-05 | Pressure Seal |
| 10 | APB02501-09 | Vacuum Poppet |
| 11 | APB02501-02 | Body |
| 12 | APB02501-01 | Seal |
Note: Inspection and Maintenance regularly.
