产品编号:JX468001-00
连接方式:
罐体法兰 8xф14 x PCD178
出口法兰 4x ф17xPCD160
公称直径 :80mm
公称压力:6Bar
接触货物材质:316
阀板密封件为FEP/Silicon材质的包覆式O型图
设计温度 : -40℃~200℃℃

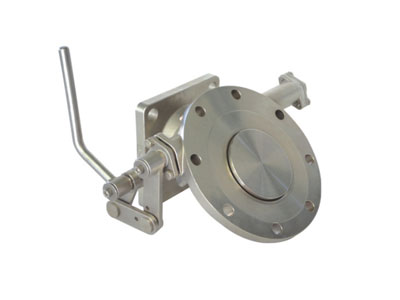

3”45°旋启式脚阀一入口法兰为8xф14mm均布在PCD178mm的法兰面,出口法兰为4xф18mm均布在PCD160mm的法兰面。产品同时可选配紧急切断及高温熔断装置,密封件采用进口包覆O型圈。
安装尺寸
![20221210190313](https://www.tkguard.com/wp-content/uploads/2022/10/20221210190313.jpg)
组装图
![20221210190324](https://www.tkguard.com/wp-content/uploads/2022/10/20221210190324.jpg)
序号 | 零件图号 | 零件名称 |
1 | JX468001-01 | 阀体 |
2 | JX468001-02 | 阀芯 |
3 | JX468001-03 | 开启组件 |
4 | JX468001-04 | 连杆1 |
5 | JX468001-05 | 连杆2 |
6 | JX468001-06 | 连杆3 |
7 | JX468001-07 | 销轴 |
8 | JX468001-08 | 平垫 |
9 | JX468001-09 | 手柄 |
10 | JX468001-10 | 衬套 |
11 | JX468001-11 | 压盖 |
12 | JX468001-12 | 阀杆 |
13 | JX468001-13 | 上轴套 |
14 | JX468001-14 | 下轴套 |
15 | JX468001-15 | 锥形轴套 |
16 | JX468001-26-00 | 扭簧组件 |
17 | JX468001-19 | 密封垫 |
18 | GB/T3452.1 | O型圈 |
19 | GB/T3452.1 | O型圈 |
20 | GB/T3452.1 | O型圈 |
21 | GB/T3452.1 | O型圈 |
22 | JX468001-24 | 包覆O型圈 |
23 | JX468001-30 | 定位套 |
24 | GB/T5783 | 全螺纹六角头螺栓 |
25 | GB/T93 | 弹簧垫圈 |
26 | GB/T70.1 | 内六角圆柱头螺钉 |
27 | JZ4C01-08 | 平垫 |
28 | GB/T882 B型 | 销轴 |
29 | GB/T91 | 开口销 |
30 | GB/T91 | 开口销 |
