焊接法兰

*产品编号:ZAF48001-03
*外径尺寸:190mm
*内径尺寸:
*厚度:8.5mm
*螺栓孔尺寸:4xф18xPCDφ145

*产品编号:ZTQ75001-02
*外径尺寸:165mm
*内径尺寸:
*厚度:8.5mm
*螺栓孔尺寸:4腰孔xφ17xPCDф125

*产品编号:ZTQ75001-01
*外径尺寸: 165mm
*内径尺寸:
*厚度:13mm
*螺栓孔尺寸:4xф17xPCDф125

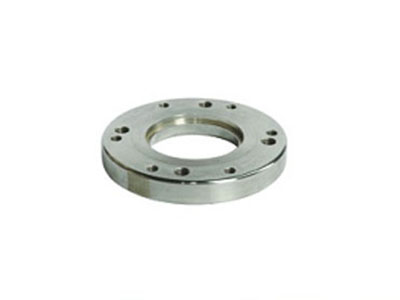

*产品编号:ZTD68001-08
*外径尺寸:200mm
*内径尺寸:95.3mm
*厚度:27mm
*螺栓孔尺寸:4xM16xPCDφ160
6xM12xPCD+168(非均布)
