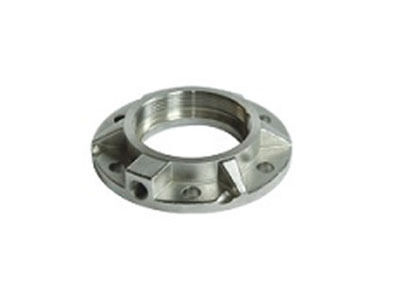

压接法兰

产品编号:ZAB46501-04-00
*压接法兰:ZAB46501-04-02
*压力表保护架:ZAB46501-04-01
*丝堵:ZAB46501-04-03

*产品编号:ZAB46501-04-02
*外径尺寸:127mm
*内径尺寸: 2 1/2”BSP
*厚度:22.5mm
*螺栓孔尺寸:6xф11xPCDф105

*产品编号:ZAB46501-05-00
*压接法兰:ZAB46501-05-02
*压力表保护架 :ZAB46501-05-01
*丝堵 :ZAB46501-04-03

*产品编号:ZAB46501-05-02
*外径尺寸:127mm
*内径尺寸: 2 1/2”BSP
*厚度:22.5mm
*螺栓孔尺寸:6xф11xPCDф105

*产品编号:ZAB46501-03
*外径尺寸: 127mm
*内径尺寸: 2 112”BSP
*厚度:23mm
*螺栓孔尺寸:6x+10xPCD中105
